FmPro Layout Diff - Graphical Interface - Title Graphic

The FmPro Layout Diff Difference Window displays comparision info between the two layouts.

.

FmPro Layout Diff - Difference Window
FmPro Layout Difference Window - 12k


.

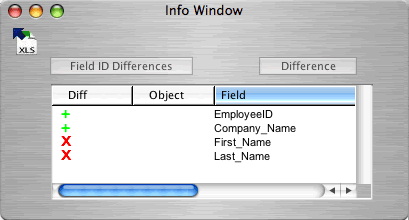

Layout Difference information is displayed in the Info Window once a comparison type is selected from the Comparison popup menu. The rows of data in this window consist only of fields which are different between the two layouts. The columns of the Info Window are resizable and scrollable both vertically and horizontally.

The default sort order of the Info Window is an ascending sort by Field Name. Clicking the title of any column re-sorts the contents of the Info Window by that particular column in ascending order. Holding down the Option key while clicking the column title performs a descending sort by the column contents.

Diff column:
+ - A plus sign is displayed if the field is found in Layout#2 but not Layout#1.
x - An x is displayed if the field is found in Layout#1 but not Layout#2.

Field Name column:
The name of layout fields which differ between the two layouts are listed in the Field Name column.

Field ID column:
Every field within a FileMaker database contains a unique ID number. The IDs for layout fields which differ between the layouts are listed in the Field ID column. Field IDs may be duplicated on layouts because the same field may appear more than once, and Field IDs from different tables or different files may be displayed on the same layout.

Table Name column:
Each field is associated with a table within the database. The names listed in this column are actually the table occurance names as defined in the FileMaker Relationship Graph.
